OptiLogic Hunting Rangefinders

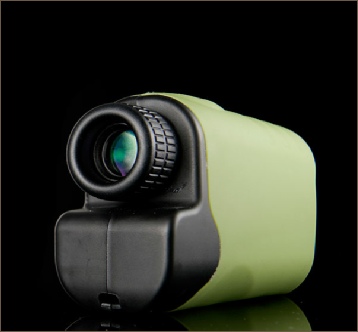

M1k TAC: 1000 metres passive

When it comes to rangefinders, it’s hard to go overboard on features and the OptiLogic M1k TAC is no exception.  Originally designed for military and tactical purposes this hunter-friendly unit sports specifications anyone in pursuit of big game will appreciate. Starting with a durable olive drab, rubberized housing, the

   M1k? is field-ready with exceptional 6X    magnification optics and a simple, easy to    understand internal LCD display.   This easy-to-use unit ranges from 4-1,000 meters (1094 yards) (passive) with 1-yard resolution. in .5 yard increments  while also denoting shot angle via Opti-Logic’s Patented VAC™ (Vertical Angle Compensation) Technology displaying with 1 degree increments.  Built with the multi-season hunter in mind Opti-Logic’s VAC™ Technology compensates for archery trajectories of out to 120 yards and those of firearm ballistics from 121 through over 1,000 yards (passive).  Equipped with an automatic Rain, Scan, Line of Sight Trajectory and VAC™ modes the unit offers a ranging solution for any hunting situation.  The M1k is a perfect partner for any outing.

Measuring 4.29 inches L X 2.95 inches H and 1.71 inches W, each compact unit perfectly fits the included carrying case or easily in a jacket pocket or pack.  Powered by a single Long-Life CR123A battery, the low current draw of the M1k will provide over 2,500 “shots” on a single battery. At less than 8 ounces, the vertically oriented unit is compact, lightweight and ready for action in the field.  With a M1k in your hand you can be confident that every shot you take will be accurate, the rest is up to you. Includes a full two-year warranty against manufacturer’s defects.



Sabre series M1k series

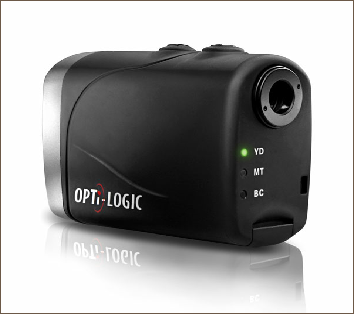

Micro 1: 95 metres passive

The easy-to-use, OptiLogic Micro I Laser Rangefinder is a culmination of many years of dreaming and development that capitalizes on several of our innovative patents and technologies-including the original patented VAC™ (Vertical Angle Compensation). Measuring a petite 3 1/4 inches L X 2 1/2 inches H X 1 3/8 inches W, the Micro I is possibly the worlds smallest rangefinder.  However, a diminutive name doesn’t equal undersized features!


Designed specifically for bowhunters, ranging less than 99 yards, this small and simple unit is fully loaded with huge attributes.  Low light conditions are no match for the Micro I.  The internal LED Red Dot Aiming system is brilliantly displayed through fully coated, zero-magnification optics that offer monstrous eye relief. A single CR2 battery powers the adaptable Micro I while three easily selected ranging modes are available with simple one-touch operation: Yardage, Meters and Ballistics Compensation with VAC™.  Each ranging mode is clearly and easily displayed on the backside of the unit by a vivid-green LED light- no guess work here!  The waterproof and shock-resistant Micro I sports a rubber-coated, velvet-like finish, which offers durability that will withstand years of hard hunting.  Not to mention peace of mind, that when your Micro I happens to bump something in a stand, it’s noise will be less than a whisper to the ears of wary whitetails.


The vertical orientation of the Micro I is easily cradled in even the smallest of hands and at less than 4 ounces this uber-compact unit is not only a space-saver, but ultra-light!  Big game and bivy hunters alike will appreciate its feather-light design and rugged construction along with its extensive features.  The Micro includes a deluxe, black Cordura-like carrying case with noise-free magnetic closure, belt loop and tether clip making it a snap to access during those split-second, dare-to-be-great situations at the trophy-of-a-lifetime.  Also includes a full two-year warranty against manufacturer’s defects.




Micro II: 395 metres passive

Based on the construction and

case of its pocket-sized older

brother the Micro I, the

OptiLogic Micro II is one more

 example of how Opti-Logic is

pushing the envelope of Laser

Rangefinder technology.




Also measuring a petite 3 1/4 inches L X 2 1/2 inches H  X

1 3/8 inches W, the Micro II is stout, but loaded with features

any hunter can benefit from-including an extended

800 yard (reflective) ranging capability.


Unlike the Micro I that is specifically designed with bowhunters

in mind, the Micro II takes into consideration the various needs

of the two-season firearm and bow hunter with a total reflective

range of 800 yards and the ability to effortlessly range deer or

other game to 400 yards.  Fully loaded with huge features this

simple-to-use unit features Ballistics Compensating VACTM Technology (Vertical Angle

Compensation).  Low light conditions are no match for the Micro II with a intensity-adjustable internal Red Dot Aiming system that is brilliantly displayed through fully coated, magnification-free optics with 50mm of monstrous eye relief. A single CR2 battery powers the adaptable Micro II while three easily selected ranging modes are

available with simple one-touch operation: Yardage, Meters and

Ballistics Compensation with VAC™.  Each ranging mode is clearly and

 easily displayed on the backside of the unit by a vivid-green LED

light- no guess work here!  The waterproof and shock-resistant

Micro II sports a rubber-coated, velvet-like finish, that offers durability

for years of hard wear.


The vertical orientation of the Micro II is also easily cradled in even the

mallest of hands and at less than 4 ounces this uber-compact unit is not only a space-saver, but ultra-light!  Big game and bivy hunters alike will appreciate its feather-light design and rugged construction along  with its extensive features. Included with each rangefinder is a deluxe, black Cordura-like, carrying case with noise-free magnetic closure, belt loop and tether clip making it a snap to access during those split-second, dare-to-be-great situations at the trophy-of-a-lifetime. The Micro II includes a full two-year warranty against manufacturer’s defects.



Sabre 1: 548 metres passive.

The OptiLogic Sabre I is a culmination of many years of Laser Rangefinder engineering that capitalizes on Opti-Logic’s distinguished record of success with their innovative patents and technologies including the original VAC™ (Vertical Angle Compensation) Technology, which ensures truly accurate readings even on severe angles. The vertically-oriented Sabre features 6x magnification, MgF multi-coated lenses and a waterproof, rubberized housing to combat nasty weather. In short, the Sabre is designed to provide clear viewing, ultra-fast target acquisition and proper function even while hunting in a bone-chilling, November downpour.


At only 5.2 inches long and 3.23 inches tall, the Sabre I is small enough to fit in a front shirt pocket but powerful enough to accurately range up to 1000 yards passive and 1200 yards on a reflective surface. Powered by a single Long-Life CR2 an easy-to-see LCD 4-digit readout displays ranges in .5 (1/2) yard increments with a target accuracy of +/- 1 yard. The Sabre I is equally perfect for Western hunters that deal with wide open spaces and longer ranges as well as Midwestern and Eastern whitetail hunters that pursue their quarry in closer quarters.


Certainly, whether it’s the bugle of a bull elk ringing through a high-country meadow, the morning silhouette of a trophy mule deer on a sage-covered hillside or the ghostlike appearance of a mature whitetail buck, the Sabre I is the perfect companion for hunters that prefer to leave nothing to chance.  Includes a full two-year warranty against manufacturer’s defects.



Sabre II: 1097 metres passive.

The OptiLogic Sabre II is a culmination of many years of engineering that capitalizes on Opti-Logic’s distinguished record of success with their innovative patents and technologies including the original VAC™ (Vertical Angle Compensation) Technology, which ensures truly accurate readings even on severe angles. The vertically-oriented Sabre features 6x magnification, MgF multi-coated lenses and a waterproof, rubberized housing to combat nasty weather. In short, the Sabre is designed to provide clear viewing, ultra-fast target acquisition and proper function even while hunting in a bone-chilling, November downpour.


At only 5.2 inches long and 3.23 inches tall, the Sabre II is small enough to fit in a front shirt pocket but powerful enough to accurately range up to 1200 yards passive and 1500 yards on a reflective surface. Powered by a single Long-Life CR2 an easy-to-see LCD 4-digit readout displays ranges in .5 (1/2) yard increments with a target accuracy of +/- 1 yard. The Sabre II is equally perfect for Western hunters that deal with wide open spaces and longer ranges as well as Midwestern and Eastern whitetail hunters that pursue their quarry in closer quarters.


Certainly, whether it’s the bugle of a bull elk ringing through a high-country meadow, the morning silhouette of a trophy mule deer on a sage-covered hillside or the ghostlike appearance of a mature whitetail buck, the Sabre is the perfect companion for hunters that prefer to leave nothing to chance.  Includes a full two-year warranty against manufacturer’s defects.



Micro series

Specs

Micro I™

Micro II™

Minimum Range

4 yds/3.6 m

4 yds/3.6 m

Max Range, Passive

100 yds/91 m

400 yds/365 m

Max Range, Reflective

400 yds/365 m

800 yds/731 m

Magnification

1X

1X

Dimensions

3.25"L x 2.5"H x 1.4"w

82.6mm x 63.5mm x 35.6mm

3.25"L x 2.5"H x 1.4"w

82.6mm x 63.5mm x 35.6mm

Optics

MgF Multi-Coated

MgF Multi-Coated

Waterproof

Yes

Yes

Target Accuracy

+/- 1 yard (m)

+/- 1 yard (m)

Read Out

Red LED w .5 yard (m) increment

Red LED w .5 yard (m) increment

Ballistics Compensation

Yes, VAC™

Yes, VAC™

Specs

Sabre™ I

Sabre™ II

Minimum Range

4 yds/3.6 m

4 yds/3.6 m

Max Range, Passive

600 yds/548 m

1200 yds/1,097 m

Max Range, Reflective

1200 yds/1097 m

1500 yds/1372 m

Magnification

6X

6X

Dimensions

5.2"L x 3.23"H x 1.8"w

132mm x 82mm x 46mm

5.2"L x 3.23"H x 1.8"w

132mm x 82mm x 46mm

Optics

MgF Multi-Coated

MgF Multi-Coated

Waterproof

Yes

Yes

Target Accuracy

+/- 1 yard (m)

+/- 1 yard (m)

Read Out

LCD w .5 yard (m) increment

LCD w .5 yard (m) increment

Ballistics Compensation

Yes, VAC™

Yes, VAC™

Specs

M1k

M1k TAC

Minimum Range

4 yds/3.6 m

4 yds/3.6 m

Max Range, Passive

1,000 yds/914 m

1,000 yds/914 m

Max Range, Reflective

1500 yds/1372 m

1500 yds/1372 m

Magnification

6X

6X

Dimensions

4.29"L x 2.95"H x 1.71"w

108.9mm x 74.9mm x 43.4mm

4.29"L x 2.95"H x 1.71"w

108.9mm x 74.9mm x 43.4mm

Optics

MgF Multi-Coated

MgF Multi-Coated

Waterproof

Yes (Non-Immersible)

Yes (Immersible)

Target Accuracy

+/- 1 yard (m)

+/- 1 yard (m)

Read Out

LCD w .5 yard (m) increment

LCD w .5 yard (m) increment

Ballistics Compensation

Yes, VAC™

Yes, VAC™
