Trafx Vehicle Counter

Easy Installation

This innovative, reliable, compact vehicle counter uses a tiny magnetometer and advanced embedded software to detect passing vehicles. Passenger cars can be counted from up to 6 metres (20 feet) away, allowing coverage of two lanes from a roadside installation. Roadside installations are safer and easier to access than mid-lane ones. If the unit is buried at the roadside, no road cuts or special tools are required. The counter’s detection range is user-programmable, and can be adjusted for single lane or two lane counting.

Compact Design

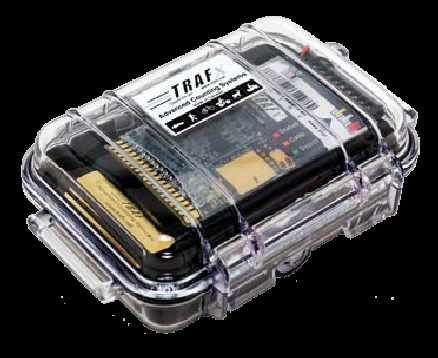

All parts are contained in one small, rugged, weather-proof box. There are no complicated external wire loops to install and calibrate, so installation time and costs, and potential set-up errors are reduced. The TRAFx Vehicle Counter is well suited for rugged, rural and remote roads. It uses three standard “C size” alkaline batteries.







Key Features

• Advanced Microelectronic Design

• Install at Roadside, Above or Below Ground

• Self-Contained Design, no External Wires or Tubes

• Ideal for Rural, Rugged and Remote Roads

• Use as Permanent or Portable Counter

• Very Small and Easy to Hide — Reduces Vandalism Risk• Low Operating, Maintenance, and Installation Costs

• Long Battery Life (approx. 1 year)

• Large Memory Capacity (store > 400 million counts)

• Field-Proven, Generation III Design (> 10 year history)

Locking box on post1

(option)

• LCD tally display

• Conversion kit

• Single lane and two lane counting

• Hourly or daily totals, or timestamps

-14 000 hourly or daily totals = > 400 million count Low-field geomagnetic; 14-bit resolutions

-14 000 timestamps

• Flexible installation options (see above)

• User programmable modes/settings

-Programmable settings include:

*Real-time clock *Start date/time

*Detection range *Digital sampling parameters

*Delay after event *Site/counter name

• Three colour-coded LEDs indicate status of operation

-green light flashes upon detection

• Digital readout of battery voltage level (e.g., 4.2V)

• Automatic low battery warning

Option A













CASE:

14cm x 10.5cm x 5cm (5.5in x 4.1in x 2in); weatherproof

WEIGHT:

250g (8.8oz) (without batteries)

POWER:

"C size" batteries; alkaline (e.g., Duracell) or lithium

BATTERY LIFE:


12 to 14 months max. with three alkalines

36 months max. with one lithium

DETECTION RANGE:

6m (20ft) max. for most passenger vehicles

DATA TYPE:

ASCII; .TXT file type

DIGITAL MEMORY DESIGN:

 Data and settings are retained even

when batteries are replaced or die

TIME KEEPING:


Quartz clock; 20ppm accuracy

OPERATING TEMPERATURE:

-40C (-40F) to +70C (158F)

SENSOR TYPE:

 Low-field geomagnetic; 14-bit resolution

COMMUNICATIONS:

 RS232 serial; 115,000 baud

OTHER:

Gold-plated PCB; silicon conformal protected electronics;

electrostatic discharge protection; short circuit protection; RoHS (leadfree)

WARRANTY:

One year parts and labour.
