TRAFX Pedestrian Counter

Key Features

• Advanced Microelectronic Design

• Detects and Counts Trail Traffic

• High-Quality Infrared Scope

• Small and Easy to Hide — Reduces Vandalism Risk

• Quick to Install

• Long Battery Life (approx. 3 years)

• Large Memory Capacity (store > 400 million counts)

• Optional Locking Steel Box

• Field-Proven, Generation III Design (> 10 year history)

Compact, Unobtrusive Design

The TRAFx Infrared Trail Counter is designed to count general traffic on trails and paths — hikers, joggers, horseback riders, snowmobiles, cyclists, etc. Unlike most infrared trail counters, it does not require a receiving unit or reflector to operate. This results in a very compact, easy-to-hide design, that reduces risk of vandalism. Using a small, high-quality infrared scope mounted on a tree and pointed towards the trail, the TRAFx Infrared Trail Counter detects and counts the infrared signature associated with warm, moving objects.






Easy Installation

Camouflage "skins" superbly hide the unit and blend it in with the forest

environment. In busy, open areas (e.g., urban areas), a low-cost locking

steel box can be used. The TRAFx Infrared Trail Counter also works well

in winter conditions on hiking, ski, snowshoe, or snowmobile trails. It is

quick and easy to install, and uses three small “AA size” alkaline

Batteries.


Features

• LCD tally display

• Extended 5-year warranty

Trail

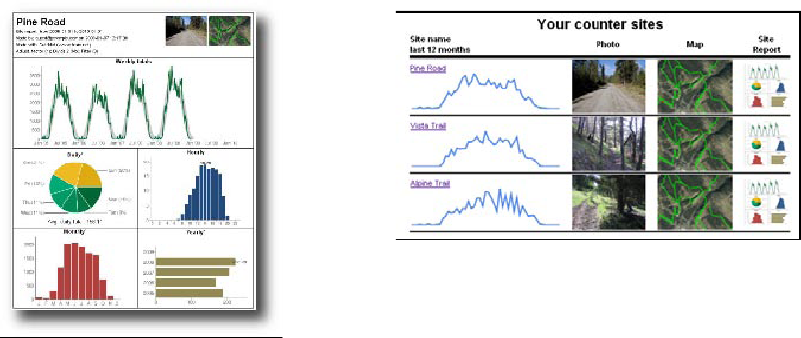

• Hourly or daily totals, or timestamps

-14 000 hourly or daily totals = > 400 million counts

-14 000 timestamps

• Flexible installation options (see above)

• User programmable modes/settings

-Programmable settings include:

*Real-time clock

*Delay after event

*Start date/time

*Site/counter name

• Three colour-coded LEDs indicate status of operation

-green light flashes upon detection

• Digital readout of battery voltage level (e.g., 4.2V)

• Automatic low battery warning


CASE:

11cm x 7cm x 3cm (4.3in x 2.8in x 1.2in); weatherproof

TOTAL WEIGHT:

170g (6oz) (without batteries)

CABLE:

1m (3.3ft)

POWER:

Three "AA size" alkaline batteries (e.g., Duracells)

BATTERY LIFE:

Approx. 3 years

DIGITAL MEMORY DESIGN:

Data and settings are retained even

when batteries are removed or die

TIME KEEPING:

Quartz clock; 20ppm accuracy

OPERATING TEMPERATURE:

-40C (-40F) to +50C (122F)

SENSOR TYPE:

Thermal infrared microsensor

DETECTION RANGE:

6m (20ft)

COMMUNICATIONS:

RS232 serial; 115,000 baud

DATA TYPE:

ASCII; .TXT file type

OTHER:

Gold-plated PCB; silicon conformal protected electronics;

electrostatic discharge protection; short circuit protection; RoHS (leadfree)

WARRANTY:

One year parts and labour.
