Traffic Statistics App:
Easy-to-use, full-featured traffic analysis application
Stalker Traffic Statistics App is a comprehensive, full-featured traffic statistics collection and analysis tool designed for law enforcement officers, traffic engineers, city maintenance departments, and other government safety personnel. The application controls radar sensor setup, survey data extraction, survey data analysis, and report creation, while working seamlessly with the Stalker Traffic Statistics Sensor.
The Traffic Statistics Sensor collects and stores raw data in embedded non-volatile memory until accessed by the application. Once collected through a serial data connection, traffic data can be filtered and analyzed using the advanced statistical capability. Data can also be exported for further use in Microsoft Excel. The Stalker Traffic Statistics App is compatible with 32- or 64-bit Microsoft Windows XP, Windows Vista, Windows 7, and Windows 8 operating
Powerful setup and configuration:
Stalker Traffic Statistics App uses a single menu screen to set up Calendar Scheduling, survey parameters, measurement units, data resolution and more through a simple-to-use but powerful interface
Analyze Collected Data
Once collected, data can be analyzed against numerous metrics and Statistics summary for multiple periods presented in a variety of ways.
Output/Display Analysis Data
Output in both graphical and tabular data in multiple chart types
User Interface:
Easy setup and configuration:
Stalker Traffic Statistics App uses a single menu screen to set up survey parameters, measurement units, and data resolution. The application automatically detects the sensor's serial port connection and baud rate.

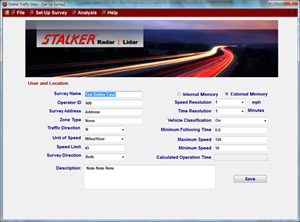

The Survey Setup Screen allows the user to define and identify various elements of the survey, such as Name, Operator ID, Survey Address, Zone, Traffic Direction, Speed in MPH, km/s, knots, meters/sec, or feet/sec, Speed Limit, Survey Direction, Internal / External Memory, Speed Resolution, Time Resolution, Vehicle Classification, Following Time, Maximum and Minimum Speeds, Calculated Operation Time, and Description.
Survey Calendar Setup
The Survey calendar is controlled through a simple-to-use but powerful interface.
Survey mode timing such as Always On, Continuous Period - Single period for survey, Daily Schedule - Every day at the same time, Selected Days - Specific days

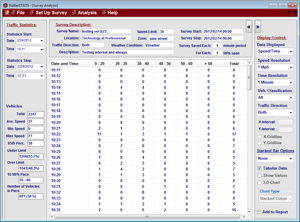

Analyze Collected Data
Once collected, data can be analyzed against numerous metrics and summary statistics for multiple periods, presented in a variety of ways:
- Average speed
- 85th percentile
- 10 MPH (km/h) pace
- Max/min speeds
- Over/under limit count

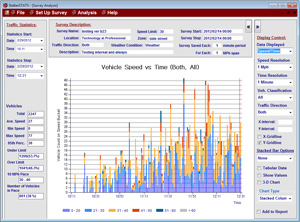

Create Color-coded Graphical displays
- Speed Vs. Time
- Vehicle Count vs. Time
- Vehicle count vs. Speed
Determine revenue projections
- Set speed bin value amount
- Set speed bin ticketing probability
Display using various filters
- View only desired direction
- View only desired vehicle classification
Output/Display Analysis Data
Output in both graphical and tabular data in multiple chart types
- 3-D Chart
- Line
- Column
- Stacked Column Area
Data Analysis:
Once collected, data can be analyzed against numerous metrics
and presented in a variety of ways.
- Provides statistics summary for any time period in the survey schedule
- Average speed
- 85th percentile
- 10 MPH (km/h) pace
- Max/min speeds
- Over/under limit count
- Create Full Color Graphical displays
- Speed Vs. Time
- Vehicle Count vs. Time
- Vehicle Count Vs. Speed
- Determine Revenue projections
- Set speed bin value amount
- Set speed bin ticketing probability
- Display using various filters
- View only desired direction
- View only desired vehicle classification
- Several data output options are available
- Select any analysis screen for output
- Output both graphical and tabular data
- Preview reports
- Send to printer or PDF file
Export data to Excel compatible text file
Traffic Statistics Sensor
