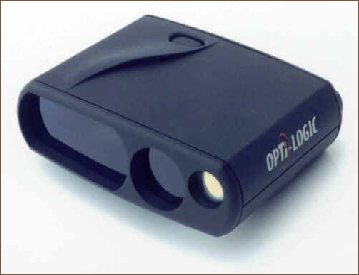

OptiLogic LH Series Rangefinders

Four separate modes determine distances, heights and angles. With the push of a button, the unit configures itself to measure in feet, yards or meters. Applications of vertical height measuring include tree height, construction, utilities, architectural measurements, landscaping, real estate appraisal, and much more. The system is ideal for applications where survey quality measurement is not required and high instrument cost is not justifiable.

Technical Specifications:

Resolution:+/- 0.1 metre

Accuracy: Distance +/- 1 m LH  +/- 0.5 m LHA

                 Height +/- 0.5 metre

Angle: 0.5 degrees

Dimensions: 10 x 12.7 x 4.5 cm.

Weight: 340 gm.

Sighting: Internal LED Dot

Power Sources: 9 volt battery

The Opti-Logic Laser based Hypsometer / Rangefinder is the ideal instrument for forestry work or applications where both height and distance measurements are required. With an inclinometer and rangefinder built into the one small package the LH Series is not only one of the most versatile rangefinders available, but also the one of the least expensive.

Operating the LH hypsometer is simple: first, the instrument is aimed at any reference point on the object and triggered. This action measures the distance from the origin, O, (the instrument location) to the reference point, A. Next the instrument is aimed at the top of the object, B, and triggered, then aimed and triggered at the base of the object, C. Using the total subtended angle between B and C, in addition to the distance to the object, the instrument automatically calculates and displays the height from points B to C.

Features:

Sleek rugged injection moulded plastic shell.

 Simple one button operation.

 Light weight ergonomic design.

 LED red dot sighting system.

 High tech hidden lens design.

 Low battery indicator.

 Large easy to read LCD display.

 Range, Horizontal distance, Height and Angle

 output modes.

 Selectable metres, feet or yards output.

Model

Range non reflective.

Range Reflective

Accuracy

XL Series



* typical accuracy

400XL

4-365 metres

914 metres

+/- 1 metre*

1000XL

4-914 metres

1280 metres

+/- 1 metre*

XT Series




400XT

4-365 metres

914 metres

+/- 1 metre*

1000XT

4-914 metres

1280 metres

+/- 1 metre*

LH Series




400LH

4-365 metres

914 metres

Distance +/- 1 metre* Height +/- 0.5 metres

1000LH

4-914 metres

1280 metres

Distance +/- 1 metre* Height +/- 0.5 metres
